Plaster Mold Making Tool - Vibrator

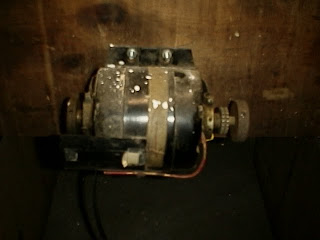

The Plaster Mold Making Vibrator is bolted to the side of my plaster molding table with the Formica table top. It is a small used motor that I purchased at a yard sale, many years ago for about $5. Any 1/4 or 1/3 horsepower electric motor will work.






The part that makes the electric motor vibrate the table is the eccentric steel disk that is fastened to the shaft of the motor. How it works is, my mold is ready to pour, the plaster is mixed and ready to pour, I plug in the motor and it vibrates the table while I pour the plaster. The vibration helps the plaster flow over every part in the mold box, and it also minimizes bubbles.






This is a diagram of the steel disk with the off-center (eccentric) hole for the shaft of the motor. It is this eccentric disk that makes the vibration. Since the motor is firmly bolted to the molding table, the table and everything on it also vibrates.


For more vibration, offset the hole for the shaft more. This tool is also useful for pouring any liquid into a mold that would benefit from being vibrated while poured.
